P4 Capsule
Advanced light therapy made effortless.
-
21,600 High-Output LEDs Powerful Full-Body Coverage
-
5-Wavelength Light Technology 450nm–850nm Spectrum
-
360° Full-Body Exposure Complete Head-to-Toe Coverage
-
3,000W LED Output Professional-Grade Performance
-
Precision Protocol Control Customize Every Session

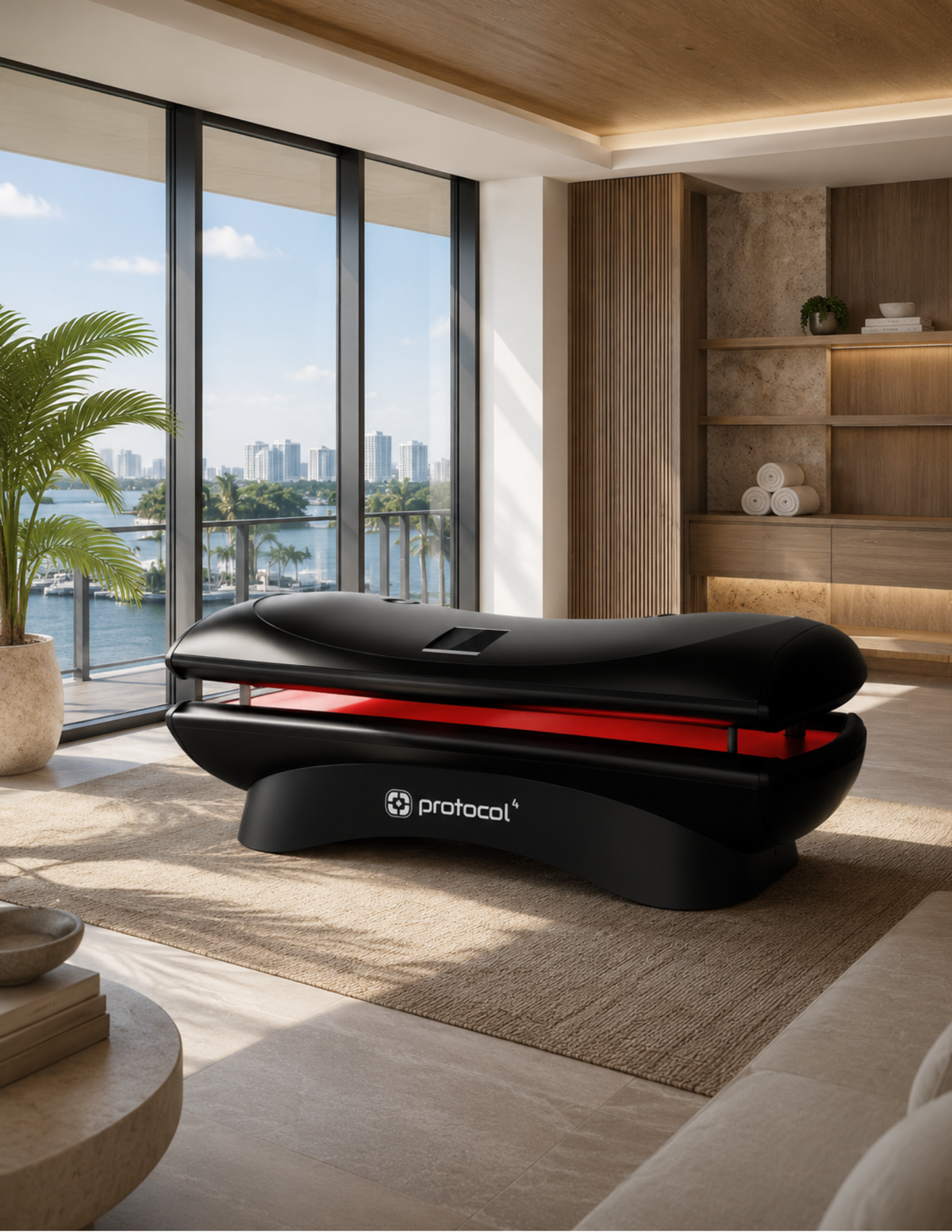

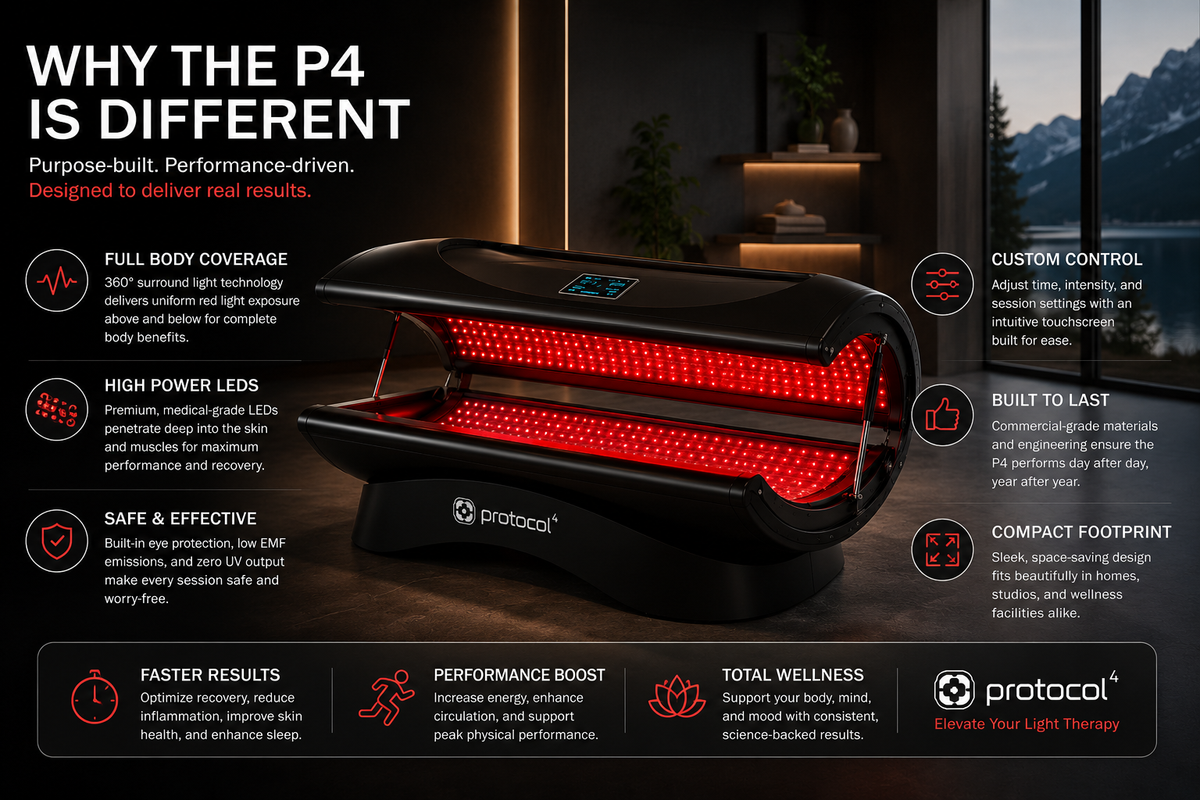

The P4 Red Light Capsule brings professional-grade photobiomodulation into a streamlined full-body system designed for convenient, comprehensive light exposure.
Its 21,600 LEDs are evenly distributed across five wavelengths—450nm, 525nm, 633nm, 660nm, and 850nm—with 4,320 LEDs dedicated to each wavelength. The capsule's upper and lower light arrays provide 360° whole-body light exposure, eliminating the need to repeatedly reposition yourself in front of conventional light panels.
3,000W rated output, adjustable pulsing frequency and duty cycle, integrated touchscreen controls, active fan cooling, and Bluetooth audio, the P4 combines advanced light technology with a comfortable and highly customizable wellness experience.
Product: P4 Red Light Capsule
LED Quantity: 21,600 LEDs
LED Rating: 0.2W
Output Power: 3,000W
Wavelengths: 450nm, 525nm, 633nm, 660nm & 850nm
LEDs Per Wavelength: 4,320
Full-Body Exposure: 360°
LED Exposure Angle: 120°
Frequency: 0–10,000 Hz
Duty Ratio: 0–100%
Internal Control: Yes
External Control: Optional Wireless Control Tablet
Bluetooth: Yes, 2 Speakers
Active Cooling: Yes
Body Cooling System: No
Dimensions: 76" L × 34" W × 32" H
Net Weight: 287 lbs
Maximum User Weight: 150 kg / approximately 331 lbs
Voltage: 220V
Power Supply: Dedicated 220V AC Branch Circuit
Rated Current: 14A at 220V AC
Required Circuit: Dedicated 30A Grounded Circuit
Power Connection: NEMA L6-30P Plug to NEMA L6-30R Receptacle
Available Colors: Black
Warranty: 1 Year
P4 Red Light Capsule
Upper Canopy with Upper Light Array
Lower Bench with Lower Light Array & Base
Integrated Touchscreen Control System
Left & Right Connecting Plates
Left & Right Hydraulic Support Rods
Canopy Light-Control & Audio Cables
Specified Installation Hardware
Factory NEMA L6-30P Power Connection
Approved Eye Protection
P4 Instruction Manual
Five-Wavelength Technology
The P4 combines 450nm, 525nm, 633nm, 660nm, and 850nm wavelengths within one full-body light system.
21,600 LEDs
A dense array of LEDs surrounds the user, with 4,320 LEDs dedicated to each of the five wavelengths.
360° Full-Body Exposure
The capsule surrounds the body with light, providing simultaneous exposure without requiring you to continually turn or reposition.
3,000W Output
Professional-grade LED output supports powerful, comprehensive light delivery across the full-body chamber.
Precision Protocol Control
Customize sessions with adjustable 0–10,000 Hz frequency and 0–100% duty ratio.
Integrated Controls
Control the P4 directly from its internal interface, with an optional wireless control tablet available.
Active Cooling
Integrated cooling fans help manage the system's operating environment during sessions.
Bluetooth Audio
Two integrated Bluetooth speakers let you listen to music, podcasts, or other audio while you relax.
1. Get Comfortable
Lie comfortably inside the P4 and position yourself for full-body exposure.
2. Select Your Light Settings
Choose your desired red and near-infrared light settings based on your preferred protocol.
3. Customize Your Session
Use the internal controls to configure the available treatment parameters.
4. Adjust Frequency
Select a frequency between 0 and 10,000 Hz when your desired protocol calls for pulsed operation.
5. Adjust Duty Cycle
Customize the duty ratio anywhere from 0–100% for additional control over light delivery.
6. Begin Full-Body Exposure
Start your session and allow the capsule's 360° configuration to deliver light around your body simultaneously.
7. Relax During Your Session
The active cooling system helps manage heat while the integrated Bluetooth speakers let you listen to your preferred audio.
8. Complete Your Session
When your programmed session is finished, allow the system to stop before carefully exiting the capsule.
Free Shipping on Most Orders Within the Continental U.S. (Excludes AK/HI). Total delivery 6 to 11 business days (handling 1 to 3 business days, transit 5 to 8 business days).
30 days return window; report any damage within 48 hours. For returns, the customer pays return shipping on change-of-mind returns; we cover it for items that arrive defective, damaged, or incorrect. Restocking fee: 25% on approved non-defective returns (waived for defective, damaged, or incorrect items and exchanges). Refunds are issued within 14 days after we receive and inspect the return.
Traditional panels generally deliver light from one direction. The P4 surrounds your body with a 360° LED configuration, allowing you to lie comfortably in one position while receiving full-body exposure.
The P4 combines 633nm, 660nm, 810nm, 850nm, and 940nm wavelengths. This gives you both red and near-infrared light within one full-body system.
No. The P4 includes an internal control system that lets you operate the capsule directly. More advanced frequency and duty-cycle controls are available when desired.
The P4 is designed so you can simply lie down during your full-body session. Integrated cooling fans help manage the operating environment, while two Bluetooth speakers let you listen to your preferred audio.
The P4 measures approximately 76" × 34" × 32", weighs approximately 287 lbs, and requires 220V power at 14A. Because of its electrical requirements and size, we recommend confirming your intended installation location before ordering.
